Make enduring elegance a reality with modern steel solution

Apollo Column's range of black hollow steel sections by APL Apollo revolutionizes construction with sizes from 150x150mm to 500x500mm, soon expanding to 1000x1000mm. Ideal for varied structures like warehouses and bridges, these high-tensile, lightweight sections enhance construction speed and reduce material waste. Available in rectangle and circular forms, they offer superior load-bearing and compression performance, making them the go-to choice for modern, efficient building projects.

PRODUCT USPs


Robust Longevity

Robust Longevity

Made using cutting-edge Direct Forming Technology (DFT), Apollo Column steel tubes are ideal for demanding construction projects with their exceptional strength, durability and high load-bearing capacity

Available in Large Sizes

Available in Large Sizes

Apollo Column is a range of black hollow steel sections available in large sizes ranging from 200x200mm to 500x500mm, along with 1000x1000mm. APL Apollo is the only structural steel tube manufacturer in the world to offer 1000mm x 1000mm hollow steel sections.

Electric Resistance Welding

Electric Resistance Welding

ERW steel tubes are crafted to maintain consistent strength throughout, eliminating weak points for dependable performance in structural applications

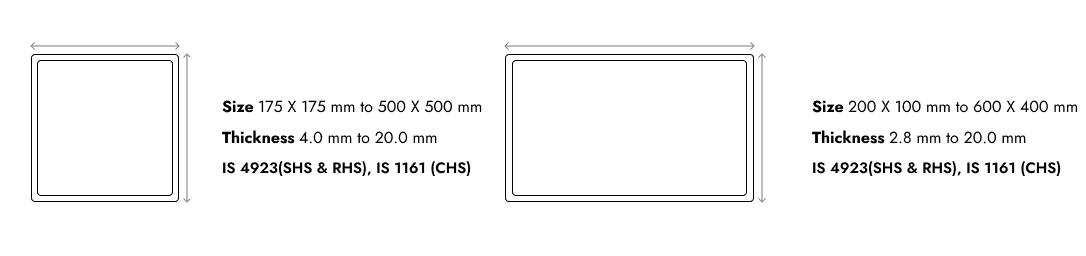

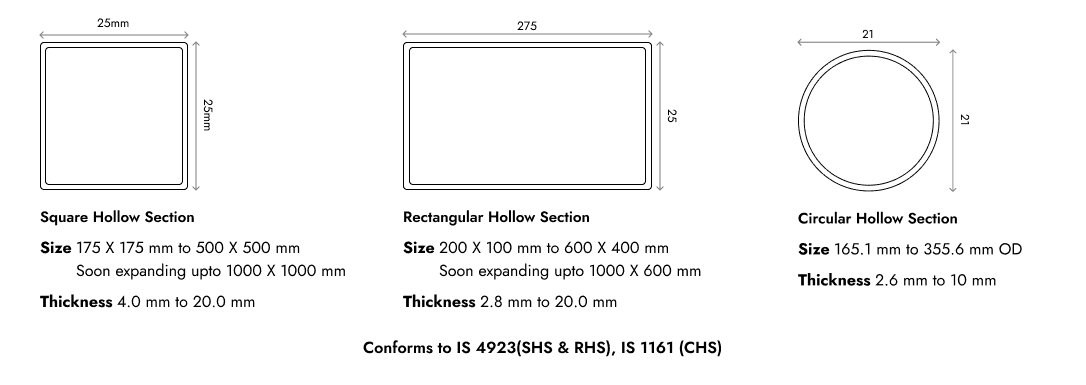

PRODUCT
SPECIFICATIONS

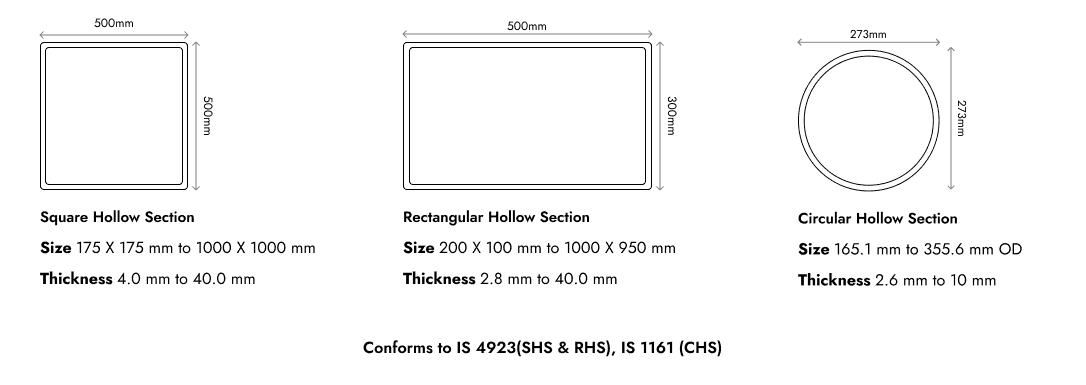

PRODUCT SPECIFICATIONS

PRODUCT ADVANTAGES


Direct Material Saving

Direct Material Saving

The use of HSS in structural buildings reduces steel consumption by 15-20%, which lowers the weight of the steel structure

Superior Torsional Resistance

Superior Torsional Resistance

Offers a marked increase in resistance to rotational forces, ensuring up to 200 times greater torsional strength than traditional open sections

Eco Friendly

Eco Friendly

Replaces traditional materials with eco-friendlier alternatives, lowering environmental impact

Visually Appealing

Visually Appealing

Enhances the visual appeal of any setting with sleek, smooth surfaces

Effortless Installation

Effortless Installation

Features a simple bolting system for quick and easy installation. Easy to weld, punch, bend, and drill, making it adaptable for various projects

 Lower Project Duration

 Lower Project Duration

The use of Hollow Steel Sections in Pre- engineered buildings reduces the time taken to complete the project.

PRODUCT APPLICATIONS


banner

Commercial Building

TECHNOLOGIES USED TO MANUFACTURE BLACK TUBES

Apollo Column is a game changer in the construction industry. In addition, it reduces steel consumption and waste while reducing project duration. Besides, these Hollow Steel Structures are manufactured using ERW technology, where tubes are formed by cold forming of steel coil into a round cylindrical shape. Longitudinal welding is also one of the technologies to produce ERW tubes.

Direct Forming Technology (DFT) is used to create Apollo Square Column. This technology enables the possibility to produce custom size of structural steel tubes without roll changes, which further results in an extreme reduction in setup time (this promotes minimal welding, hence helps to cut cost and time significantly). This DFT method can modify tube dimensions automatically as the process is computerized.

Torsional strength makes these steel rectangular tubes an excellent choice for fire resistance and consistent. Other benefits of these rectangular tubes are as follows:

  1. Flexibility in design: It allows engineers and architects to create tubes to meet the project requirements. Steel Column Structures are hollow and lightweight, so it is easy to customize in unique sizes.
  2. Uniform strength: ERW steel tubes offer uniform strength because of no weaker axis. Hollow tubes are manufactured with uniform distribution of material around their axis.
  3. Easy to paint: Column tubes are square and have 30%-40% less surface area than equivalent built-up sections. Due to its uniform and smooth shape, it is easy to paint and transport.
  4. Higher torsional strength: Compared to open sections, it offers 200 times more torsional resistance. Hollow Sections prevent the structures from failure and dangerous accidents.
  5. Less material wastage: It has less surface area than other built-up sections. Its cut-to-length sizes are from 4 to 12 mm. So, Apollo Column require less material and reduce application time. The use of Direct Forming Technology helps to create pieces in custom sizes with negligible wastage. This leads to a massive reduction in overall project costs.
  6. Accurate weight: ERW square tubes are available in accurate weights consistent with the theoretical calculations. The weight of HSS is also low as compared to other built-up sections.
  7. Less steel consumption: It reduces steel consumption while building the structure. So, it ultimately reduces the overall weight of the steel structure. Also, the use of HSS in structural buildings reduces steel consumption by 15-20%.
  8. Lower project cost: The weight reduction and low steel consumption will not only prevent the wastage of steel, but also reduces the erection and transportation costs. As a result, it will show reduction in the overall project cost.
  9. Easy to install: It doesn’t not require much effort and time to install these hollow sections in the construction structure. The bolting system simplifies the construction process for the contractors.
  10. Ease of fabrication: Ease of welding, punching, bending, and drilling makes Apollo Column a perfect choice.
  11. Environment Friendly: APL Apollo Column is an eco-friendly product. It replaces conventional construction materials, such as wood and tin and prevents severe pollution.
  12. Aesthetically Pleasing: have smooth surfaces that enhance the aesthetic appeal of the structures. It is suitable for infrastructure, commercial as well as residential projects.
  13. Lower Project Duration: The use of Hollow Steel Sections in Pre- engineered buildings reduces the time taken to complete the project. This improves the efficiency of project management.

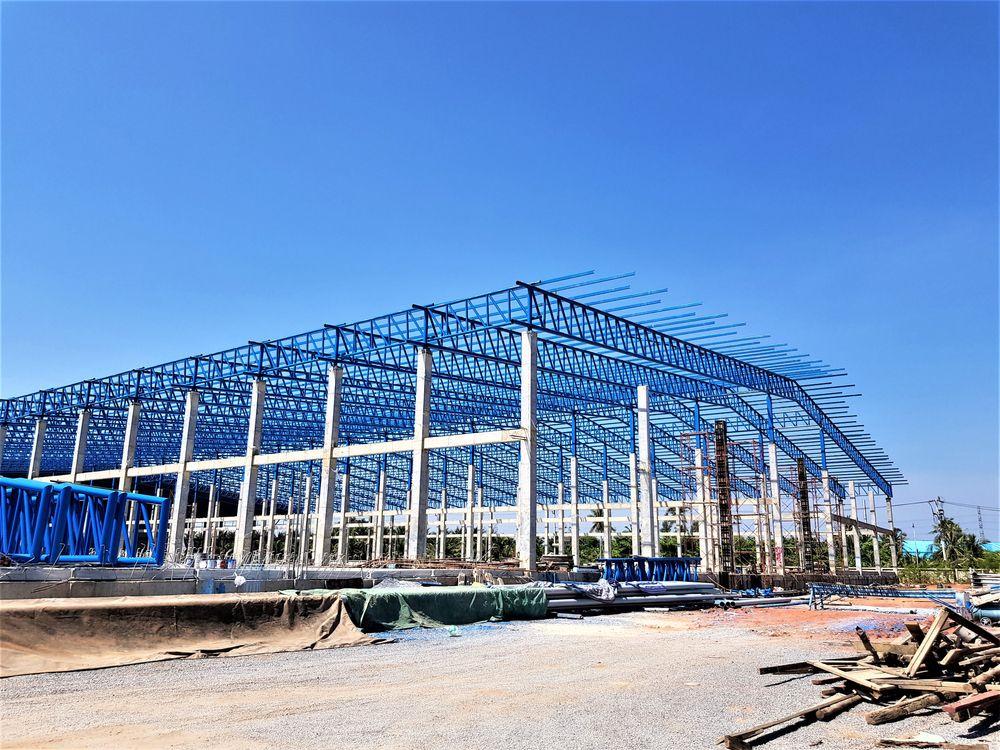

Infrastructure Applications: Steel tubes are a great alternative to pre-engineered structures. Project contractors and consultants can use tubes. Rural and urban infrastructure can be constructed with hollow steel sections. The column can be used for factories, warehouses, airports, industrial sheds, railways, bullet train, convention centres, etc. This is due to Direct Forming Technology (DFT) and Electric Resistance Welding (ERW).


Industrial Applications: Steel tubes have a wide range of industrial applications and are commonly used in factories, warehouses and industrial sheds.


Commercial Buildings: The strength-to-weight ratio of this material is excellent for commercial buildings. Additionally, it is available in a variety of shapes and grades. It can be the material of choice to build office towers, malls, schools, hospitals, hotels, etc.


APL Apollo is the right choice for all steel structures, PEB structures, structural steel buildings, and construction.
